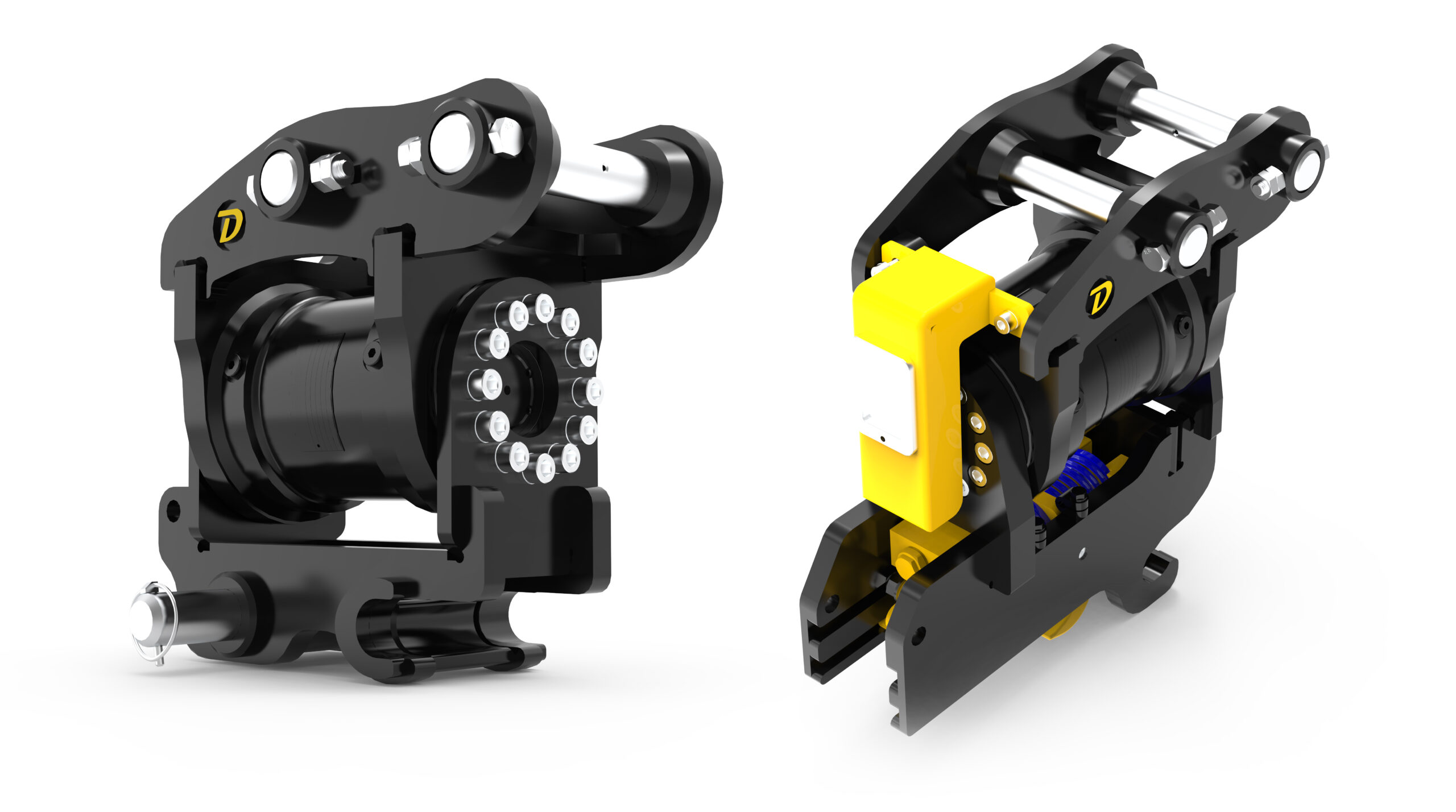

Introducing the D-Lock Tilt

When Productivity is Paramount Demand the D-Lock tilt.

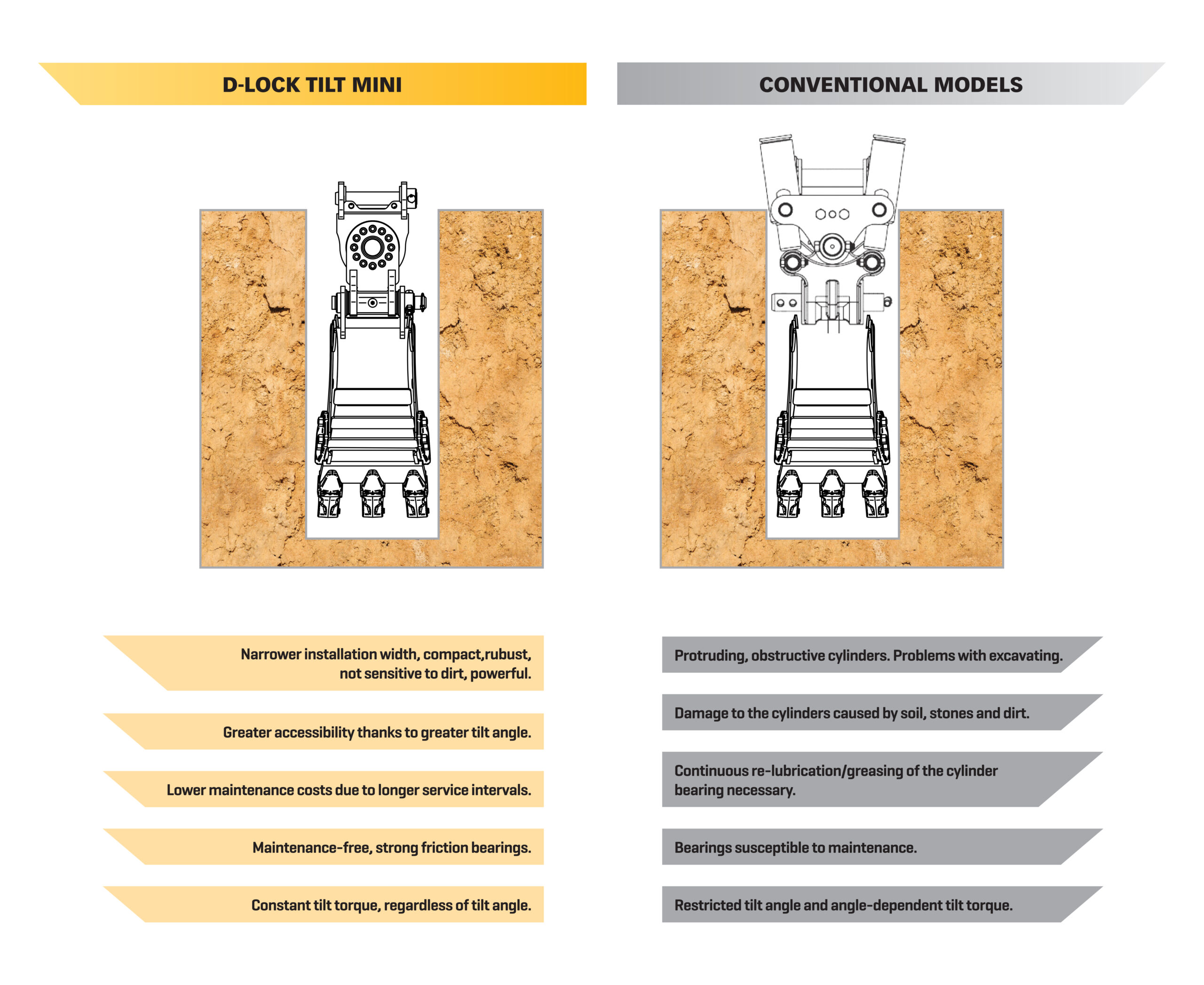

Compact in design, powerful and virtually maintenance free, the D-Lock Tilt Coupler incorporating a precision built actuator ensures trouble free operation. Compact design – Improving machine performance • Integral overload protection Simplified connections and controls • Fully guarded hoses • No unwanted movement Up to 180 degrees of tilt • Actuator only has two moving parts and is triple sealed.

Be Compliant: Be Safe, Not Sorry

Do you know the Facts?

There has been a lot of emphasis in recent months on ensuring that quick couplers are safe and fit for purpose. The current Australian Standard is AS4772-2008 to which all quick hitch couplers MUST comply to. The British Standard EN474-1 and Machinery Directive 2006/42/EC is also a proficient global standard which is recognised in many countries.


If your quick coupler allows an attachment to swing on one pin only or releases the attachment in the event of loss of engagement forces, then it DOES NOT meet the EN474 standard or the Machinery Directive 2006/42/EC.

Many Construction Companies also have their own onsite safety regulations, many of which specify that your quick hitch coupler MUST: Have an automatic safety system and/or be dual locking.



The D-Lock is standard on the D-Lock Tilt and available for use on all Tiltrotators.

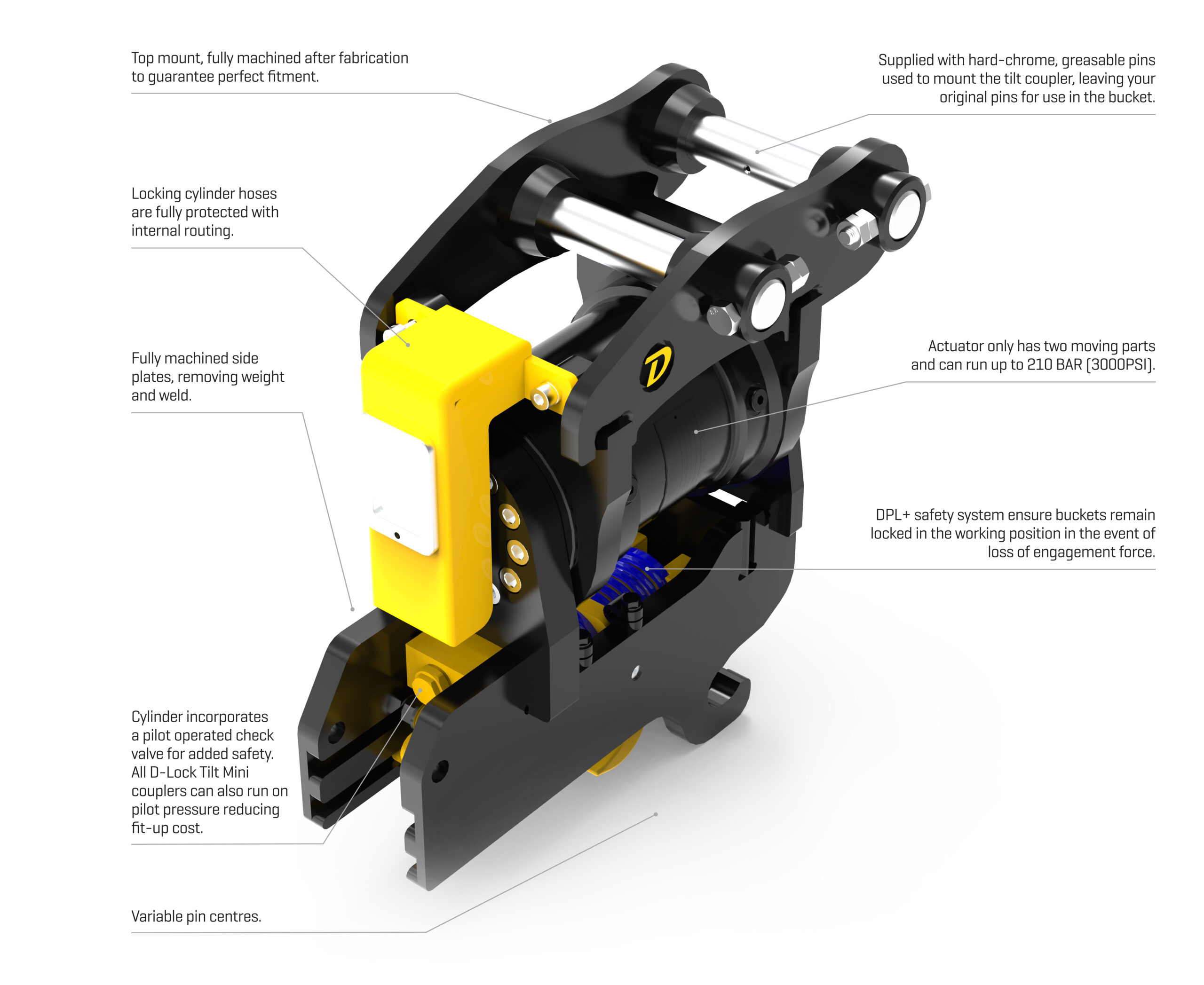

D-Lock Coupler: Dual Pin Locking (DPL) System

Front lock automatically engages the moment the rear jaw is activated negating any chance of the bucket falling off if the operator misses the rear pin.
DPL safety system locks both front and rear pins in the event of loss of engagement forces.
DPL safety system ensures attachments cannot swing on the front pin in the event of loss of engagement forces.

Safety first – with the D-Lock Coupler Fully complies to AS4772-2008 and EN474 Standards and ISO 13031 International standard.

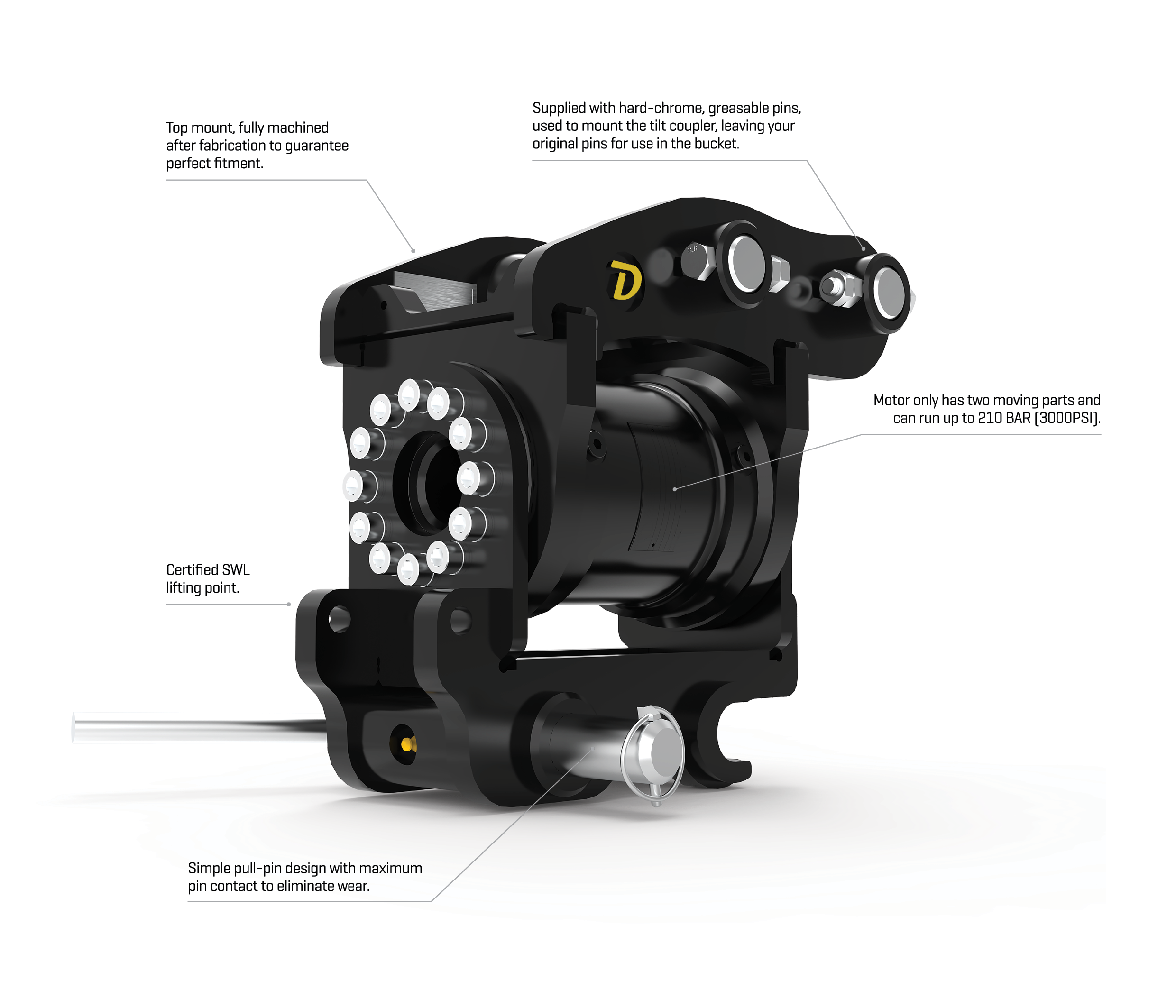

D-Lock Tilt: Features

  • Compact design – improving machine performance
  • Simplified connections and controls
  • No unwanted movement
  • Actuator only has two moving parts and is triple sealed
  • Only requires four hydraulic lines
  • Integral overload protection standard from 4 tonne upwards
  • Fully guarded hoses
  • Up to 180 degrees of tilt
  • No pins or bushes to wear out


Industry leading 2 year or 3000 hour (whichever occurs first) warranty.


The D-Lock Tilt is the only tilting coupler currently available with a dual pin locking coupler, making it one of the safest couplers available globally.


Content coming soon


D-Lock Tilt: The Internals

Doherty Power Actuator at a Glance

  • Slim structure
  • Maintenance-free
  • Multiple connection ports
  • Simple assembly
  • Triple sealed
  • Specifically designed for excavator attachments
  • Only two moving parts
  • Integral relief valve

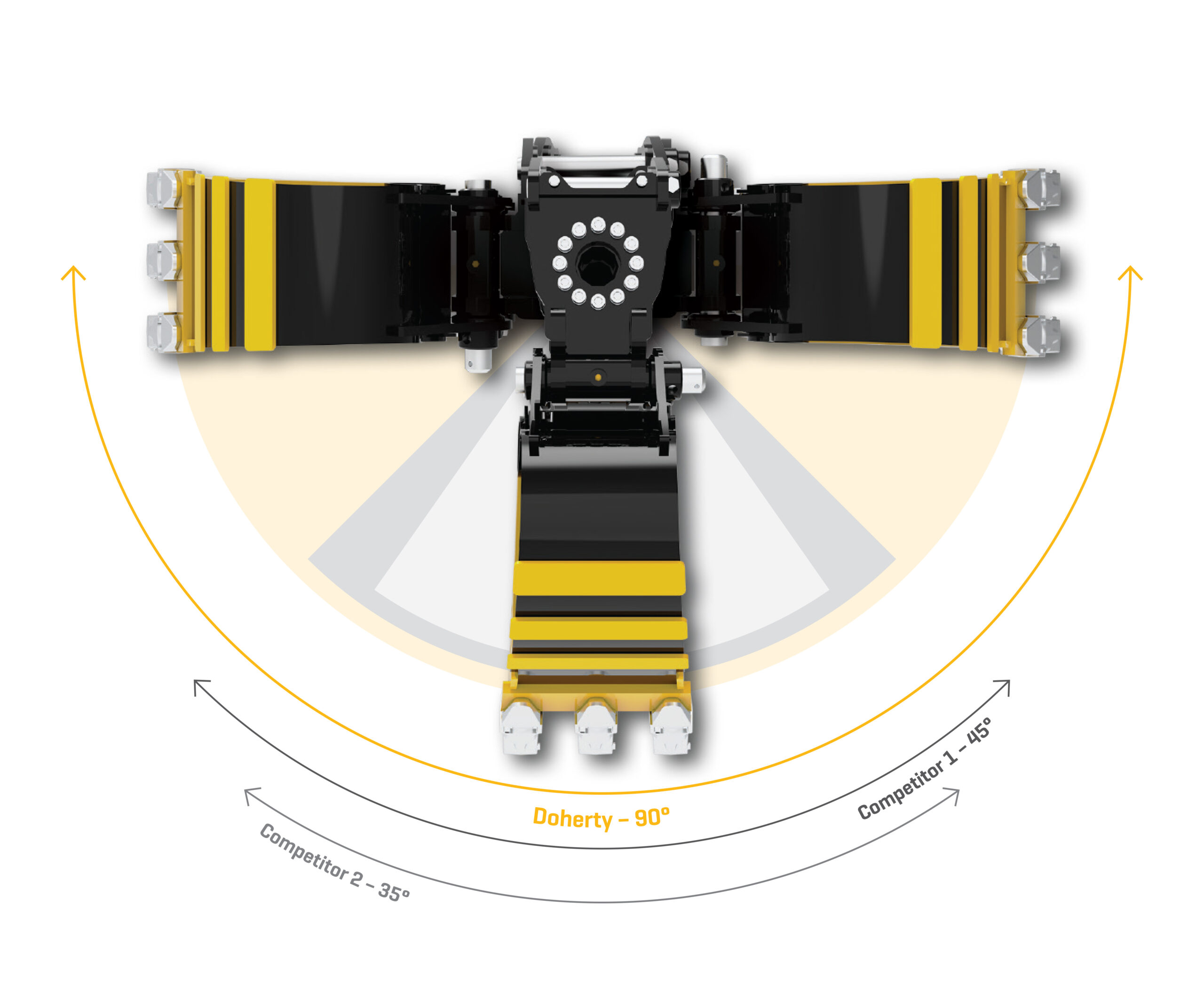

    Wide tilting range, up to 180 degree tilt range
