POWERDIG CLEANING AND

MUD BUCKETS

INTERESTED? GET A QUOTE NOW

OVERVIEW

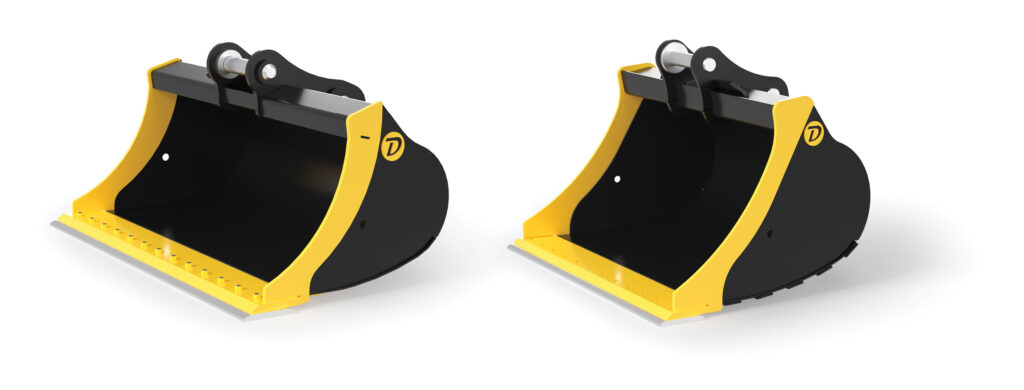

Powerdig Series

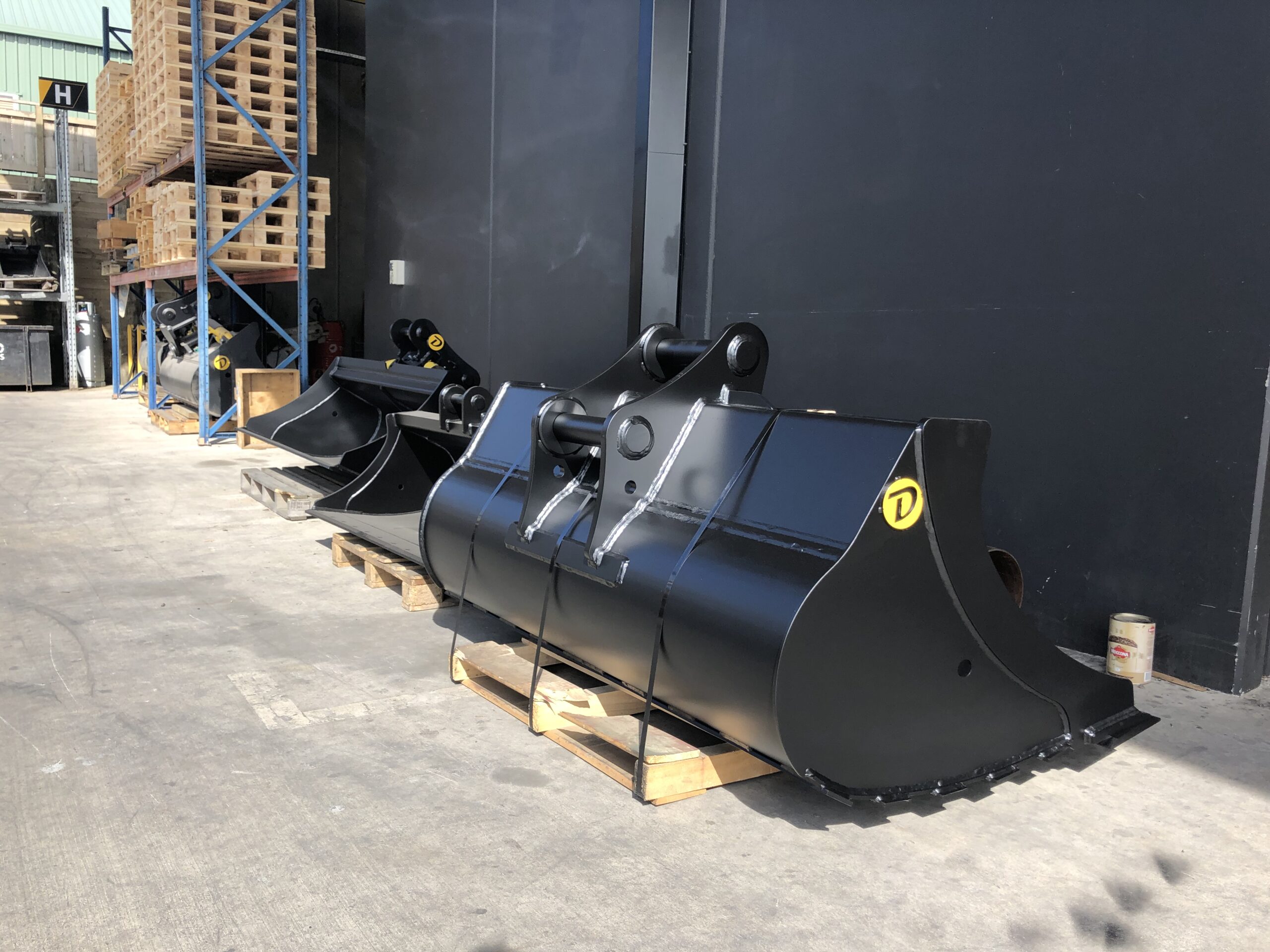

The Doherty Engineered range of Cleaning and Mud Buckets are a result of extensive field research. The design ensures minimal bucket to product contact when digging which substantially increases bucket life. The use of horizontal wear strips on the curved floor and the selection of wear resistant steels result in a bucket design which has minimal wear and maximum life.

All Buckets are direct mount design with removable pins and have a short tip radius to provide maximum breakout force.

FEATURES

Content coming soon.

EFFICIENCY

Content coming soon.

CUSTOM

Content coming soon.

SPECIFICATIONS

Powerdig Cleaning bucket

Weight class	Product code	Spec	Bucket width	Weight	Capacity CuM (SAE heaped)	Get & Qty	Pin ∅	Pin centres
015	BC015	GP	900	57	0.07	BOCE 100 X 12	25-30-32	85-170
025	BC025	CP	1000	97	0.12	BOCE 150 X 16	35	137-200
035	BC035	GP	1200	128	0.19	BOCE 150 X 16	40	200
055	BC055	GP	1400	168	0.31	BOCE 150 X 16	45	234
080	BC080	GP	1600	268	0.46	BOCE 150 X 16	50	300
110						BOCE
140	BC140	GP	1800	494	0.84	BOCE 200 X 20	65	405
180	BC180	GP	2000	636	0.94	BOCE 200 X 25	70	370-463
240	BC240	GP	2000	850	1.2	BOCE 250 X 25	80	475
290	BC290	GP	2200	1305	1.72	BOCE 250 X 32	90	506
350	BC350	GP	2200	1313	1.83	BOCE 250 X 32	90	535
450	BC450	GP	2400	1500	2.7	BOCE 350 X 50	100-110	535-630
550
650

Note: All dimensions are in mm.
Contact Doherty for sizes not shown.

Powerdig Mud bucket

Weight class	Product code	Spec	Bucket width	Weight	Capacity CuM (SAE heaped)	Get & Qty	Pin ∅	Pin centres
015
025	BM025	GP	1000	106	0.1	BOCE 150 X 16	40	200
035	BM035	GP	1200	145	0.26	BOCE 150 X 16	40	200
055	BM055	GP	1200	190	0.33	BOCE 150 X 16	45	234
080	BM080	GP	1500	340	0.61	BOCE 150 X 16	50	300
110
140	BM140	GP	1500	340	0.84	BOCE 200 X 20	65	405
180	BM180	GP	1600	695	1.27	BOCE 200 X 25	65	405
240	BM240	GP	1800	831	1.59	BOCE 250 X 25	80	475
290	BM290	GP	2200	1073	1.94	BOCE 250 X 32	90	506
320	BM320	GP	2000	1311	2.13	BOCE 250 X 32	90	535
350	BM350	GP	2000	1311	2.13	BOCE 250 X 32	90	535
450	BM450	GP	2400	1760	3.86	BOCE 350 X 50	100-110	535-630
550
650
